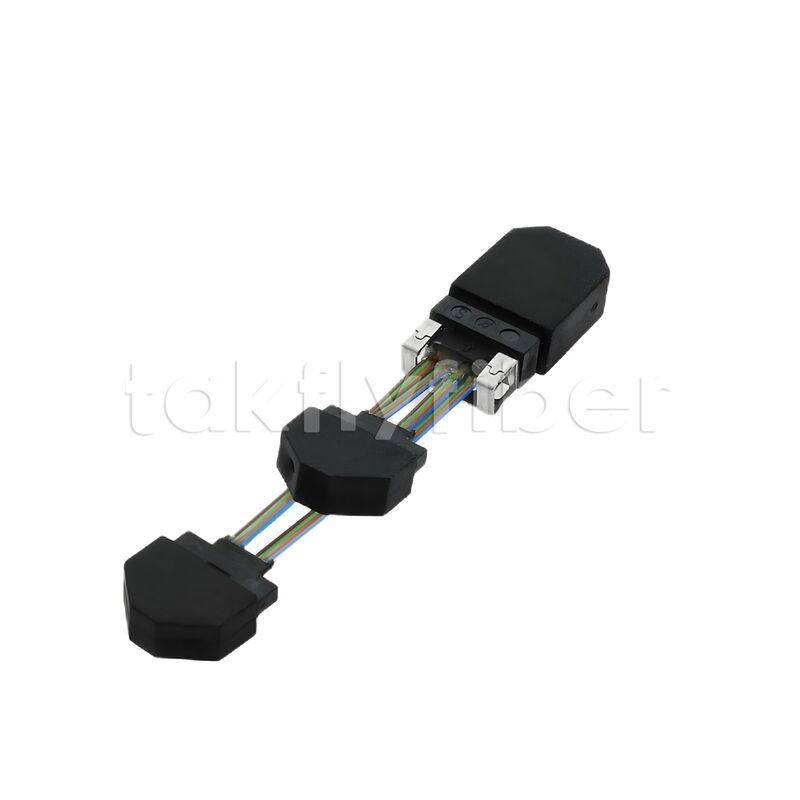

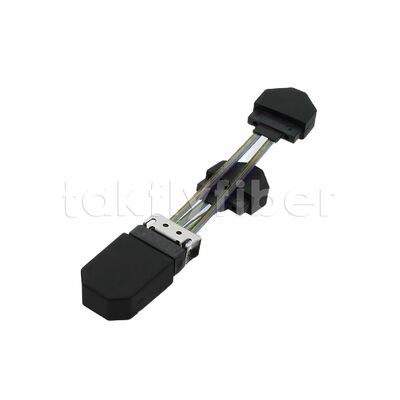

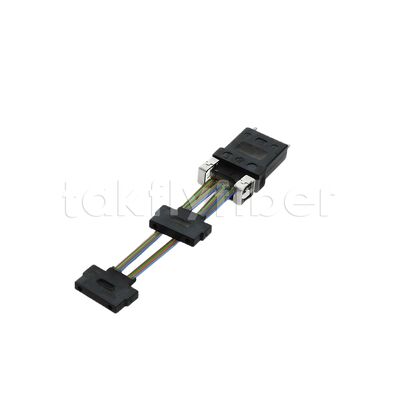

MT-2 Mini MT Patchcord with Low Insertion Loss and Precision Length Tolerance for QSFP Modules
Dettagli:
| Luogo di origine: | Shenzen, Cina |
| Marca: | OEM |
| Certificazione: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Numero di modello: | MPO MTP |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 |
|---|---|
| Prezzo: | 5.99~19.99US$/PC |
| Imballaggi particolari: | con il contenitore di cartone |
| Tempi di consegna: | 3-7 giorni lavorativi |
| Termini di pagamento: | T/T, Western Union, Paypal |
| Capacità di alimentazione: | 50000 pezzi a settimana |
|
Informazioni dettagliate |
|||
| Nome del prodotto: | Cavo adattatore Mini MT MT-2, SMG657A, OM3, OM4 per QSFP, QSFP+, QSFP28, 100G PSM4 | Nuclei in fibra: | 2P/4P/8P/12P/24P |
|---|---|---|---|
| Modalità fibra: | OM2, OM3, OM4, OM5; OS1, OS2 | Tipo di lucidatura: | APC o PC |
| Genere: | Maschio, femmina | Perdita: | Perdita bassa o perdita standard |
| Lunghezza della fibra: | da 20 mm a 50 mm | Forma della fibra: | Tipo del nastro |
| Tolleranza sulla lunghezza: | +0,3/-0 mm~+0,5/-0 mm | ||
| Evidenziare: | Low Insertion Loss MT-2 Mini MT Patchcord,Precision Length Tolerance MTP Patchcord,QSFP Compatibility Fiber Optic Patchcord |
||
Descrizione di prodotto
MT-2 Mini MT Patchcord, SMG657A, OM3, OM4 for QSFP, QSFP+, QSFP28, 100G PSM4
Takfly's MT-2 Mini MT Patchcord is engineered for parallel optics technology, specifically designed to seamlessly integrate optical modules (QSFP) with external ports. This patchcord ensures efficient signal transmission within various optical modules including QSFP, QSFP+, QSFP28, 100G PSM4, QSFP-DD, Micro QSFP, OSFP, CXP, CFP, CDFP, and other parallel optics modules, enhancing overall network performance.
Key Features
- Superior Performance: Low insertion loss less than 0.35dB with high stability ensures reliable signal transmission and enhanced network efficiency
- Precise Fit: Precision-engineered with tight length tolerance of L+/-0.15mm for secure, exact connections every time
- Customization Flexibility: Extensive MT patchcord series fully customizable to meet unique network requirements
- Standards Compliance: Adheres to highest industry standards including GR-1209, GR-1221, and RoHS for guaranteed reliability
Applications
Compatible with QSFP, QSFP+, QSFP28, 100G PSM4, QSFP-DD, Micro, OSFP, CXP, CFP, CDFP and other parallel transmission optical transceiver modules. Supports OEM/ODM matching for internal micro connection applications of various optical modules above 200G.
Technical Specifications
| Item | Specification |
|---|---|
| Connector A | MT insert with guide pin |
| Connector B | MT pin |
| Fiber shape | Ribbon / loose fiber |
| Number of cores | 8F/12F/16F/24F |
| Optical fiber model | OM2, OM3, OM4, OM5; OS1, OS2 |
| Length | 20~50mm Optional |
| Length tolerance | +0.3/-0mm~+0.5/-0mm |
Quality Assurance: 100% testing for insertion loss, return loss, end face test, 3D test and polarity test before shipping.
Why Choose Takfly
- More than 25 years manufacturing experience in fiber optic products
- More than 450 assembly workers with 6+ years experience
- More than 10 R&D Engineers
- 16 sets of Germany imported injection machines and 16 production lines
- More than 30 sets of testing machines: OTDR, 3D, VFL, IL&RL test instruments; tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
- OEM branding accepted
- Regular exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
- Main Cooperated partners: Nvidia, Google, Vodafone, Telefonica, Orange, Movistar, etc.
Quality Control Process
- Spot check raw material incoming inspection before production
- Full inspection after every individual process completion
- Full inspection of production half-done stages
- Full inspection of finished products before packing
- Spot check before shipping
Delivery Information
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging: Plastic bag, carton and pallet options available according to your requirements
With over 10 years of professional experience in fiber optic products at Takfly, our team is ready to assist with your specific requirements. Contact us today to discuss your fiber optic product needs.
