1×8 MPO/MTP to SC/APC PLC Splitter – Single-Mode, 1×8 Configuration, MPO Input to 8× SC/APC Outputs, Low Insertion Loss, for FTTx / PON / CATV / Data Center High-Density Fiber Distribution
Dettagli:
| Luogo di origine: | ShenZhen e ZhongShan, Cina |
| Marca: | DF/OEM/Nuetral |
| Certificazione: | CE/ROHS/CPR EN50575/ISO9001 /ISO14001 |
| Numero di modello: | PLC-1×8-MPO-SC/APC |
Termini di pagamento e spedizione:
| Prezzo: | can be negotiated |
|---|---|
| Imballaggi particolari: | Cartone |
| Tempi di consegna: | 5-9 giorni lavorativi dipendono dalla QTY |
| Termini di pagamento: | T/T, Western Union, PayPal |
| Capacità di alimentazione: | 1000 PZ/Giorni |
|
Informazioni dettagliate |
|||
| Evidenziare: | 1×8 MPO to SC/APC PLC splitter,MPO MTP splitter low insertion loss,single-mode fiber splitter for FTTx |
||
|---|---|---|---|
Descrizione di prodotto

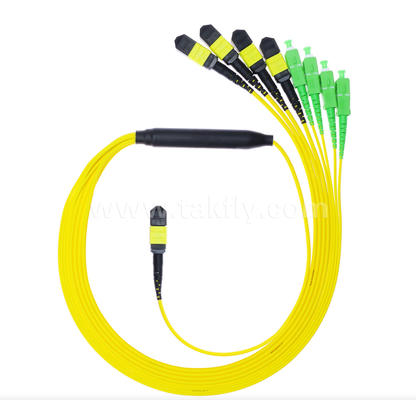

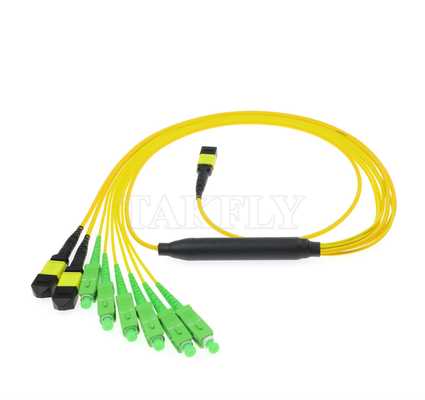

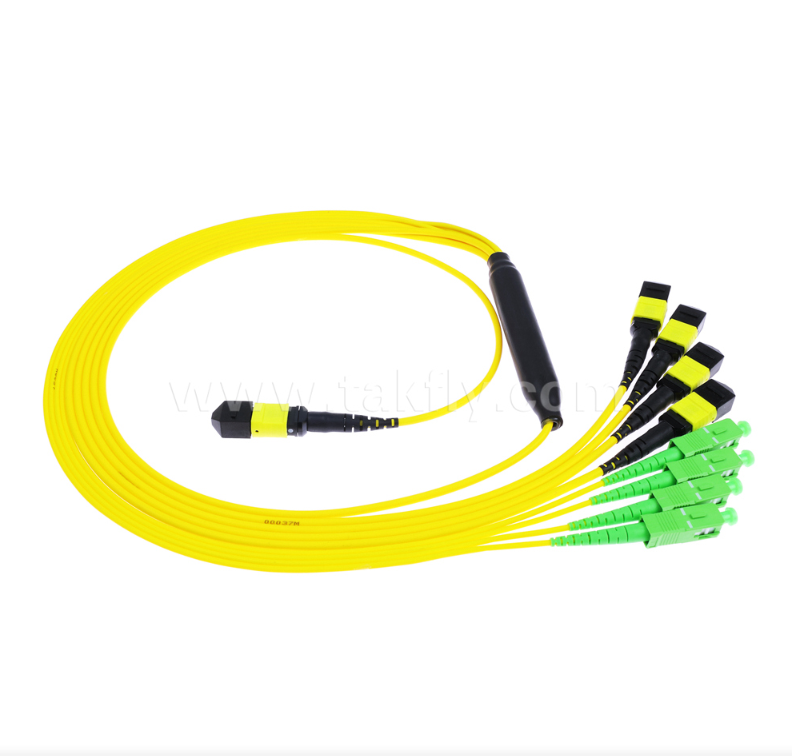

1×8 MPO/MTP to SC/APC PLC Splitter
Single-Mode, 1×8 Configuration, MPO Input to 8× SC/APC Outputs, Low Insertion Loss, for FTTx / PON / CATV / Data Center High-Density Fiber Distribution
Product Overview
The 1×8 MPO/MTP to SC/APC PLC Splitter is a high-density optical power distribution module that converts one MPO/MTP input interface into eight independent SC/APC output interfaces. Based on Planar Lightwave Circuit (PLC) technology with a quartz substrate, it uniformly distributes an optical signal from a single input to eight outputs with excellent loss uniformity and wavelength flatness.
This design eliminates the need for eight separate input connectors - a single MPO/MTP connector handles all input fibers, significantly reducing rack space and simplifying cable management in high-density FTTx, PON, CATV, and data center environments.
Key Features
- 1×8 MPO/MTP to SC/APC configuration
- Single-mode fiber compatibility
- Low insertion loss and excellent uniformity
- High-density fiber distribution solution
- PLC technology with quartz substrate
Applications
- FTTx networks
- PON systems
- CATV distribution
- Data center connectivity
- High-density fiber optic distribution
Quality Assurance

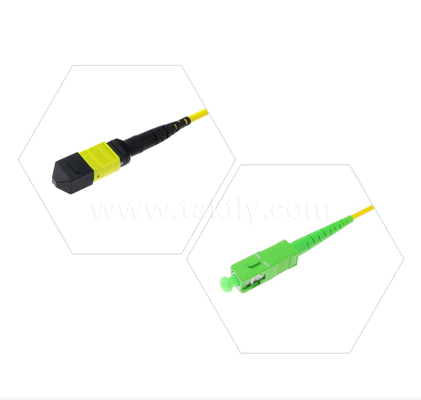

Premium Ferrule Technology
Available with high quality ferrule, professional polishing technology, precise matching for optical endface to achieve stable transmission and efficient connection.
100% Testing & Quality Control
TAKFLY MPO/MTP-PLC Splitter are fully 100% tested, compliant to product standards and designed to meet user demands.
Why Choose TAKFLY?
26 Years of Manufacturing Experience in Fiber Optic Products
Experienced Assembly Team: More than 80 assembly workers with 6+ years of experience
Strong R&D Capability: More than 10 R&D engineers
Advanced Production Equipment: 16 sets of German imported injection machines and 16 production lines
Comprehensive Testing Facilities: More than 30 sets of testing instruments including OTDR, ILD, VFL, RL, IL, tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
OEM Branding Accepted: Custom logo/branding available
Quality Control Process
- Incoming inspection: Spot check of raw materials before production
- In-process inspection: Full inspection at every individual process completion
- Pre-packaging inspection: Full inspection of finished products before packing
- Pre-shipping inspection: Spot check before shipping
Industry Presence
Active participation in major industry exhibitions including:
- OFC
- FOCC
- ConnecAsia
- NFTCOM
- AFRICACOM
- SMART ICT
- Contelem
- Source Electronics Exhibition
Delivery Information
| Service Type | Timeline |
|---|---|
| Samples | 1-3 working days |
| Mass production orders | 3-7 working days |
| Packaging | Plastic bag, carton, and pallet options available according to your requirements |
