LC Duplex Fiber Optic Adapter Singlemode multimode APC UPC fiber optic adapter
Dettagli:
| Luogo di origine: | CINA |
| Marca: | OEM |
| Certificazione: | CE/REACH/RoHS |
| Numero di modello: | TK-FOA-LCD-888 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 100 |
|---|---|
| Prezzo: | 0.23USD |
| Imballaggi particolari: | Scatola di cartone 55*40*35cm |
| Tempi di consegna: | 3 ~ 5 giorni |
| Termini di pagamento: | T/T, Western Union, MoneyGram |
| Capacità di alimentazione: | 100000/WEEK |
|
Informazioni dettagliate |
|||
| perdita di inserzione: | ≤ 0,2 dB | Conta delle fibre: | Doppia struttura |
|---|---|---|---|
| Colore: | Blu/Acqua/Rosa/Verde/Beige/Verde lime | Temperatura di esercizio: | -40~85℃ |
| Evidenziare: | LC duplex fiber adapter single mode,fiber optic adapter APC UPC flange,single mode LC duplex adapter |
||
Descrizione di prodotto

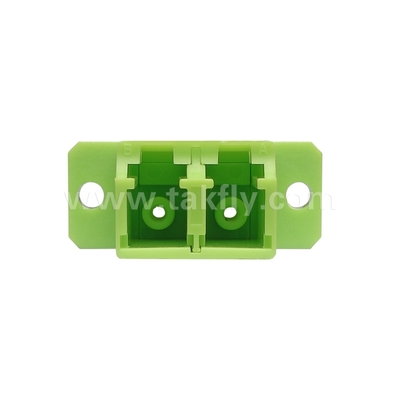

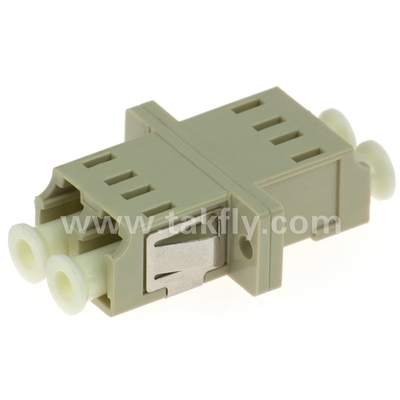

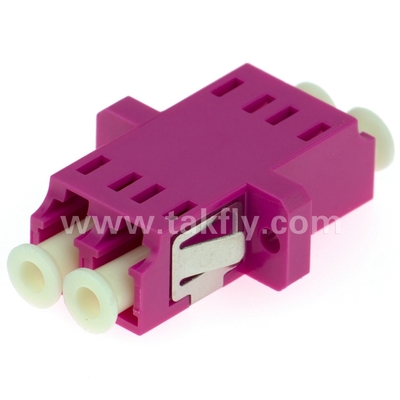

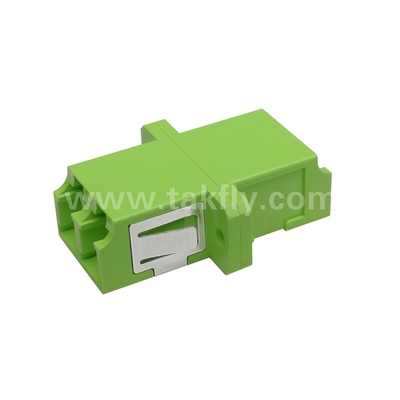

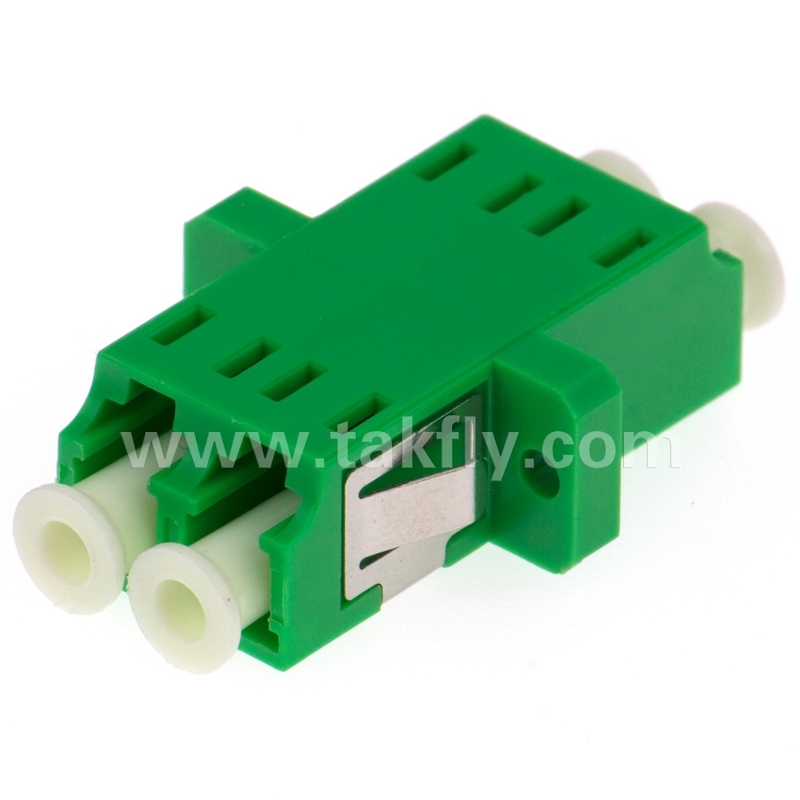

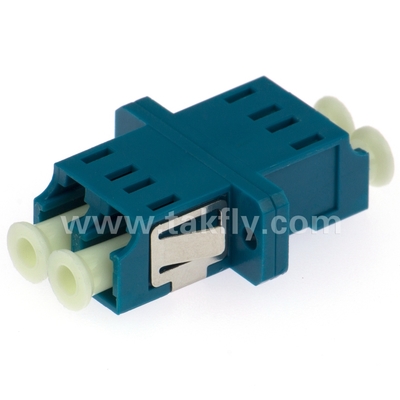

LC Duplex Fiber Optic Adapter Singlemode multimode APC UPC fiber optic adapter
Product Attributes
| Attribute | Value |
|---|---|
| Insertion loss | ≤0.2dB |
| Fiber count | Duplex |
| Color | Blue/Aqua/Rose/Green/Beige/Lime green |
| Operating temperature | -40~85℃ |
Product Description
Fiber optic adapter is the component applicable for the connection between fiber optic connectors, which can help couple the output power from the transmitting fiber into the receiving fiber at the maximum. Moreover, it's also mainly used for the connection between the cables or the cables and the equipment as well. LC adapters from TAKFLY are featured with easy installation, low insertion loss, good interchangeability and high & low temperature resistance.
Key Features
- Single mode and Multimode compatibility
- Zirconia sleeves or Phosphor bronze sleeves
- NTT standard compatible
- Patch panel mount applications
- Compliant with JIS5974 and Bellcore GR-326 standards
- Meets IEC874-14 & IEC874-19 specifications
- All parts compliant with ROHS
Technical Specifications
| Product | LC Adapter |
|---|---|
| Mode | SM | MM |
| Insertion Loss | ≤0.2dB | ≤0.2dB |
| Mating Durability (500 times) | Additional Loss ≤0.1dB |
| Temperature Stability (-40℃～85℃) | Additional Loss ≤0.2dB |
| Operating Temperature | -40℃～+85℃ |
| Storage Temperature | -40℃～+85℃ |
