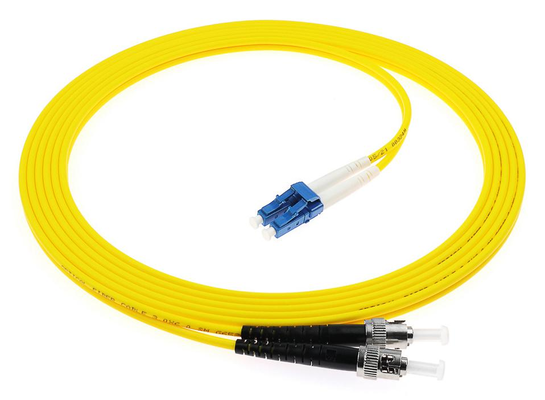

LC-ST Duplex Fiber Optic Patch Cord PVC/LSZH/TPU SM/MM
Dettagli:
| Luogo di origine: | Cina, Shenzhen |
| Marca: | DF/OEM/Nuetral |
| Certificazione: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Numero di modello: | TK-PC-48F-SC-OS2-50M |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | Negoziabile |
|---|---|
| Prezzo: | negotiable denpend on QTY |
| Imballaggi particolari: | Blister + cartone |
| Tempi di consegna: | 5-9 giorni lavorativi a seconda del QTY |
| Termini di pagamento: | Western Union, T/T, MoneyGram/Paypal |
| Capacità di alimentazione: | 1000pcs/giorno |
|
Informazioni dettagliate |
|||
| Nome del prodotto: | Cavo patch in fibra ottica duplex LC-ST | Tipo del fronte dell'estremità: | UPC e APC |
|---|---|---|---|
| Tipo di fibra: | SM(G652、G655、G657);MM(OM1-OM5) | Diametro del cavo: | 2.0、3.0 o su misura (simplex/duplex) |
| Perdita di inserzione: | dB del ≤ 0,3 | Perdita di ritorno: | UPC SM≥50dB 、APC SM≥ 60 dB、 PC MM ≥ 35 dB |
| Ripetibilità: | ≤ 0,1 | Resistenza alla trazione: | >70 N |
| Temperatura operativa: | -20 ℃ ~ 70 ℃ | Temperatura di conservazione: | -40 ℃ ~ 80 ℃ |
| Materiale della guaina esterna: | PVC、LSZH、TPU | Raggio di curvatura（Statico/Dinamico）: | 10D/20D |
| Lunghezza: | Personalizzato | Marchio in fibra: | Corning, YOFC, OFS, Draka |
| Evidenziare: | duplex fiber optic patch cord PVC,fiber optic patchcord LSZH SM,TPU fiber optic cable MM |
||
Descrizione di prodotto
LC-ST Duplex Fiber Optic Patch Cord PVC/LSZH/TPU SM/MM
Fiber optic patch cord is the cable with both ends terminated with fiber optic connectors, which realizes the connection between optic networking equipment and equipment, and equipment and patch cords. Easy operation and convenience make it indispensable as one of the passive products for optic networking construction.
Product Applications
- CATV
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
- Meet various requirements of market and clients
Product Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
Product Specifications
| End face type | UPC and APC |
|---|---|
| Fiber type | SM (G652,G655,G657); MM (OM1-OM5) |
| Cable Diameter | 2.0,3.0 or customized (Simplex/duplex) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC, LSZH, TPU |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | Customized |
Product Picture
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
FAQ
Q1: How can I get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quanlity problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Further-more we will also take action to improve the quality in future
Q6: What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7: What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10: Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
If you're interested in our products or have any doubt, feel free to contact me at any time!
