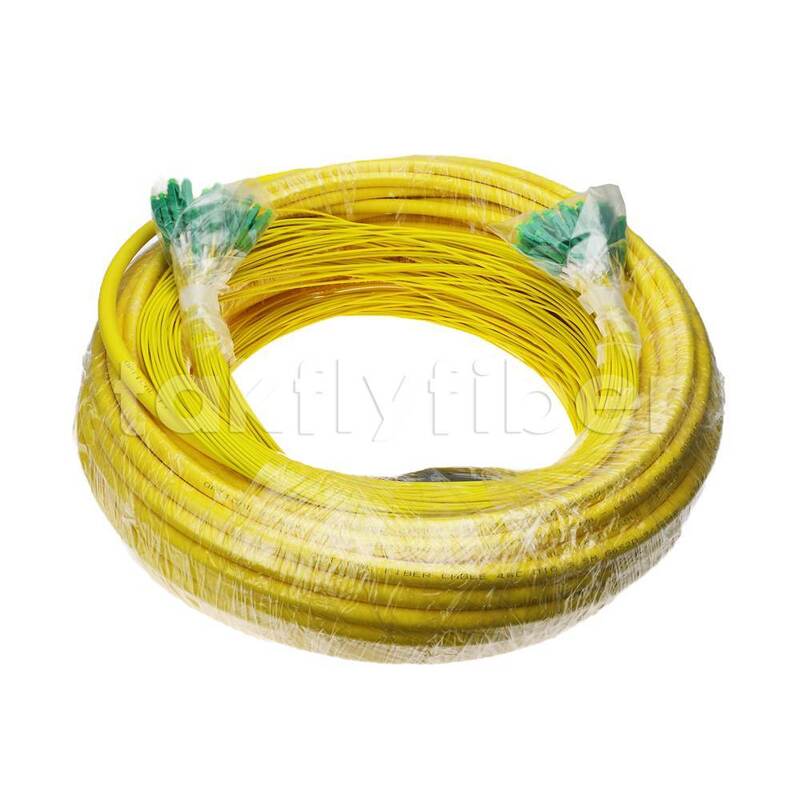

CPR Dca Rated 48 Cores LC Single Mode G657A1 Fiber Optic Fanout Cable Patchcord
Dettagli:
| Marca: | TK/DF/Neutral |
| Certificazione: | CE, ROHS, REACH, CPR EN50575 |
| Numero di modello: | TK-48F-PC-LA-LA-XXXM |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 |
|---|---|
| Prezzo: | US$0.01~US$49.99 |
| Imballaggi particolari: | Imballaggio standard per l'esportazione |
| Tempi di consegna: | 7-9 giorni lavorativi |
| Termini di pagamento: | T/T, Western Union, PayPal, L/c |
| Capacità di alimentazione: | 10000 pezzi a settimana |
|
Informazioni dettagliate |
|||
| Marchio della fibra: | Corning, YOFC, OFS, Draka, HT | Lunghezza: | 20m o personalizzato |
|---|---|---|---|
| Nome prodotto: | cavo patch in fibra ottica | Diametro della fibra: | 9/125μm |
| Tipo di cavo: | In modalità singola o multimodale | Vibrazione: | ≤0,2 dB |
| Tipo di connettore: | LC/APC, LC/UPC | Guaina: | LSZH |
| Temperatura di funzionamento: | -20 ~ +65 °C | Materiale del cavo: | LSZH/PVC |
| Colore del connettore: | Verde/Blu/Beige/Acqua/Magenta | applicazione: | Telecomunicazioni, Data Center, CATV, LAN |
| Perdita di inserimento: | <= 0,3dB | Pacchetto di trasporto: | Rilo |
| Conformità agli standard: | CE, ROHS, REACH, ISO9001, ISO14001 | ||
| Evidenziare: | CPR Dca rated fiber optic patchcord,LC single mode G657A1 cable,48 cores fiber optic fanout |
||
Descrizione di prodotto
Fiber Optic Patch Cords are manufactured using multi-core Breakout Tight Buffer Optical Cable. These cables are ideal for various applications including data center main, horizontal, zone and equipment distribution area trunk cables for Storage Area Network (SAN) and other critical applications, as well as for fixed lengths in interbuilding or intrabuilding backbones.
Our Fiber Optic Patch Cord features individual 900μm fibers with kevlar reinforcement and an outer jacket (up to 2.0 mm) along with a strength member, all bundled within a protective outer jacket. These high-density cables support fiber counts up to 144 fibers. For easy identification, 0.9mm cables are color-coded, while 2mm cables utilize numbered labels.
- CATV Systems
- Telecommunication Networks
- Active Device Termination
- Local Area Networks (LANs)
- Data Processing Networks
- Test Equipment
- Wide Area Networks (WANs)
- Low insertion loss and high reflection loss
- Excellent exchange ability
- Superior durability
- High temperature stability
- Compliant with Telcordia GR-326-CORE standard
| Parameter | Specification |
|---|---|
| Connector Type | LC |
| End Face Type | APC |
| Fiber Type | SM G652D, SM G657A1, SM G657A2 |
| Cable Diameter | 10.5mm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | UPC SM≥50dB, APC SM ≥60dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile Strength | >70N |
| Operating Temperature | -20℃ to 70℃ |
| Storage Temperature | -40℃ to 80℃ |
| Outer Sheath Material | LSZH |
| Bending Radius (Static/Dynamic) | 10D/20D |
| Length | 10M, 20M, 50M, 100M or customized |
| Fanout Length | 0.5M, 1M or customized |
| Fanout Diameter | 2.0mm |
To place a custom order, please specify the following parameters:
- Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
- Mode type: Single mode (UPC and APC) / Multi mode (PC)
- Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
- Coating material: PVC / LSZH
- Fiber count: Simple / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core and more
- Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
- Patch cord length: Customized to your requirements
- For MPO/MTP connectors: Specify method (A type / B type / C type), gender (male/female), and fiber count (4/8/12/16/24/32/48/72/96/144/288 fiber)
With over 10 years of experience in this field, we provide exceptional service and professional technical support.
If you're interested in our products or have any questions, please contact us for immediate assistance.
