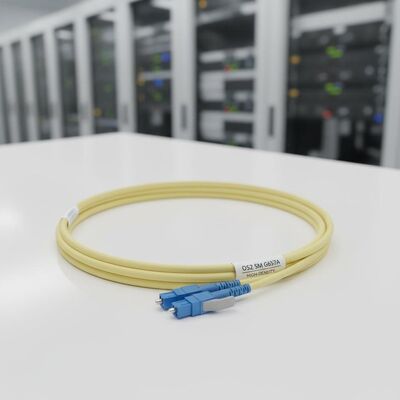

LC Uniboot Fiber Optic Patch Cable with 2.0mm Diameter and OS2 SM G657A for High-Density Environments
Dettagli:
| Luogo di origine: | Cina |
| Marca: | DF/OEM/Nuetral |
| Certificazione: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Numero di modello: | TK-UPC-2.0-1M-LCP-LCP-SM-OM3-XXX |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 100 pezzi |
|---|---|
| Prezzo: | US$0.01~3.99/PC |
| Imballaggi particolari: | Esportazione di imballaggio standard |
| Tempi di consegna: | 5-9 giorni lavorativi a seconda del QTY |
| Termini di pagamento: | Western Union,T/T,MoneyGram/Paypal |
| Capacità di alimentazione: | 10000 pezzi/giorno |
|
Informazioni dettagliate |
|||
| Nome del prodotto: | Cavo toppa a fibra ottica Uniboot LC/UPC-LC/UPC OS2 SM G657A Duplex OFNR 2.0mm | Perdite di interazione: | ≤0,2 dB |
|---|---|---|---|
| Perdita di ritorno: | PC MM ≥ 30 dB, SM ≥ 60 dB (APC), SM ≥ 50 dB (PC) | Tipo di fibra: | OS2, OM3, OM4 |
| Diametro: | 2,0 mm | Tipo di connettore: | computer |
| Materiale della giacca: | LSZH/PVC/OFNR/OFNP | Colore: | Acqua, giallo, viola o personalizzato |
| Lunghezza d'onda: | 850/1310nm | Lunghezza: | 1 m o personalizzato |
| Temperatura di funzionamento: | -20℃~70℃ | Diametro della fibra: | 9/125 |
| Grado: | Grado di telecomunicazione | Certificato: | CE/ROHS/REACH |
| Capacità di produzione: | 10000 pezzi/giorno | ||
| Evidenziare: | LC Uniboot Design Fiber Optic Patch Cable,2.0mm Diameter LC Uniboot Patch Cord,OS2 SM G657A Fiber Optic Patchcord |
||
Descrizione di prodotto
Uniboot Fiber Optic Patch Cable LC/UPC-LC/UPC OS2 SM G657A Duplex OFNR 2.0mm
Takfly Uniboot Fiber Optic Patch Cable features LC-LC Uniboot connectors designed for high-density environments. This compact design uses a single cable for both fibers, reducing cable congestion and improving airflow in crowded data center applications.
Key Benefits
The LC-LC uniboot design significantly reduces cable management requirements and enhances hot airflow in high-density fiber patching environments. This space-saving solution minimizes cable management challenges while maintaining optimal performance.
Technical Specifications
| Specification | Details |
|---|---|
| Connector Type | Standard Clip LC to LC |
| Polish Type | UPC to UPC |
| Fiber Count | 2 Fibers |
| Fiber Grade | Bend Insensitive Fiber |
| Fiber Mode | OS2/SM G657A1/SM G657A2, OM3/OM4 |
| Wavelength | 850/1300nm 1310/1550nm |
| Flame Rating | Riser (OFNR) |
| Cable Outside Diameter | 2.0mm |
| Polarity | A (Tx) to B (Rx) |
| Tensile Strength | 60/100N (Long/Short Term) |
| Min. Bend Radius (Optical Fiber) | 7.5mm |
| Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Insertion Loss | ≤0.2dB |
| Return Loss | ≥30dB |
| Attenuation at 850nm | ≤3.5dB/km |
| Attenuation at 1300nm | ≤1.5dB/km |
| Operating Temperature | -10 to 70°C (14 to 158℉) |
| Storage Temperature | -20 to 70℃ (-4 to 158℉) |
Applications
- CATV Systems
- Telecommunication Networks
- Active Device Termination
- Local Area Networks (LANS)
- Data Processing Networks
- Test Equipment
- Wide Area Networks (WANS)
Product Features
- Uniboot with Single Housing Design
- High Back Reflection Loss
- Stable Capability and High Reliability
- Excellent Mechanical Capability
- PVC Jacket as Default
- Ideal Solution for High-Speed Data Transmission
- 100% Inspected for Optical Characteristics Before Shipment
Product Design & Polarity Options
The connector design enables quick and simple polarity changes between A-B and A-A configurations without tools or specialized skills. This tool-free polarity switching eliminates the risk of fiber exposure or damage and allows cables to function as LC duplex or simplex as needed.
