1 to 3 Gigabit Waterproof PoE Extender
Dettagli:
| Marca: | Takfly/DF |
| Certificazione: | CE, ROHS, ISO14001, ISO9001, CPR,ANATEL,REACH |
| Numero di modello: | TK-MPO-PC |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 |
|---|---|
| Imballaggi particolari: | imballaggio internazionale dell'esportazione |
| Tempi di consegna: | 1-3 giorni lavorativi (dipende dalla quantità) |
| Termini di pagamento: | TT 100% |
| Capacità di alimentazione: | 3000 pezzi/giorno |
|
Informazioni dettagliate |
|||
| materiale della guaina: | PVC | Lunghezza d'onda dell'operazione: | 1310/1550nm |
|---|---|---|---|
| Perdita di inserzione: | 0,3 dB | Intercambiabilità: | ≤0,2 dB |
| Polarità: | Digitare A, B o C | Quantità di fibra: | 24 |
| Modalità: | SM MM | Materiale della ghiera: | Ceramica |
Descrizione di prodotto
Product Introduction
The PoE extender splits the signal into three data channels. Each port supports the IEEE 802.3af/at standard. The switch features a VLAN isolation mode; when enabled on ports 1–3, these ports cannot communicate with each other and can only connect to the uplink port (port 4).
This PoE extender is designed to work with PSE power sourcing equipment. It provides power to network devices such as wireless APs, routers, IP cameras, and IP phones in environments where power outlets are not readily available or are located far away. In many surveillance applications, the best camera position may not have easy access to power. The PoE extender makes it easier to integrate terminal devices into a PoE network, allowing surveillance equipment to be installed at the optimal location without being restricted by the placement of power outlets.

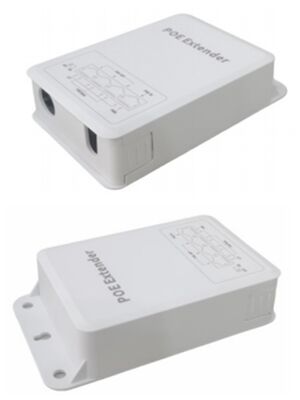

The housing is made of ABS engineering plastic, which offers high heat resistance and good thermal insulation. The pull-out box design allows for easy installation and removal, while vertical installation provides better waterproofing.
Technical Features
- The device provides 1 Gigabit RJ45 input port and 3 Gigabit RJ45 output ports.Supports PoE standard power supply with intelligent power detection; supports 1236/4576 power supply modes and 4-core/8-core network cables.
- Compliant with IEEE 802.3af/at standards; compatible with PoE switches and IP cameras from brands such as HK, DH, TP, and others.
- When the VLAN switch is turned on, ports 1–3 are isolated from each other and can only communicate with uplink port 4.
- Stable signal transmission with auto-negotiation for 10/100/1000Mbps network environments.
- Auto MDI/MDIX support for easy installation and system debugging.
- Built with high-quality components and a robust design, ensuring reliable transmission across a wide range of applications.
- Pull-out box design allows for easy installation and removal; vertical installation provides better waterproofing.
- Housing made of ABS engineering plastic, offering high temperature resistance and good thermal insulation.
Technical Parameters
| Parameter | Specification |
|---|---|
| Product Type | Waterproof PoE Extender |
| MTBF | 100,000 hours |
| Input Voltage | DC 44-57V |
| Output Voltage | DC 44-57V |
| Total Power Consumption | < 25W (full load) |
| Operating / Storage Temperature | -20℃ ~ +70℃ |
| Relative Humidity | 5% ~ 95% (non-condensing) |
| LED Indicator | Power LED |
| Switch Function | When the switch is turned on, ports 1–3 are in VLAN isolation mode; these ports cannot communicate with each other and can only communicate with uplink port 4. |
| Ingress Protection | IP30 |
| Model Number | GW-POE013G-FS |
| Interfaces | 1 RJ45 input port + 3 RJ45 output ports |
| Weight | 132g / unit |
| Dimensions | 120 × 84 × 32 mm (total length 140mm) |
| Carton Quantity | 170 units / carton |
