High‑Performance MPO/MTP Patch Cord – 8/12/24 Fibers, Low Loss, IEC & TIA Compliant
Dettagli:
| Luogo di origine: | Shenzen, Cina |
| Marca: | Takfly/OEM |
| Certificazione: | CE, ISO, RoHS, GS |
| Numero di modello: | Cavo di toppa di MPO/MTP |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 pezzo |
|---|---|
| Prezzo: | US $9.88-US $19.88/ Pcs |
| Imballaggi particolari: | I pp insaccano poi in cartone |
| Tempi di consegna: | giorno 3-7working |
| Termini di pagamento: | L/C,T/T,Western Union,Paypal |
| Capacità di alimentazione: | 50000 pezzi/mese |
|
Informazioni dettagliate |
|||
| Nucleo: | Multicore | Connettore A: | SC |
|---|---|---|---|
| Connettore B: | MPO/MTP | Modalità fibra: | 50/125um |
| Diametro del cavo: | 0.9/2.0/3.0 | Tipo polacco: | PC/APC |
| Perdita di ritorno: | MM/PC:20dB/SM/APC:60dB | Perdita di inserzione: | 0.35dB Max (0.15dB tipico) |
| Materiale della guaina esterna: | PVC/LSZH | Radio di piegatura statico/dinamico: | 10D/20D |
| Codice Hs: | 854470000 | Genere: | Maschio/Femmina |
| Evidenziare: | MPO MTP patch cord low loss,MPO MTP fiber cable IEC compliant,High-performance MPO MTP cord 24 fibers |
||
Descrizione di prodotto

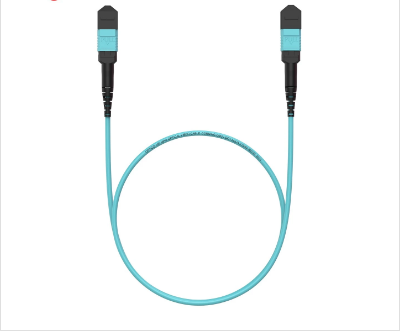

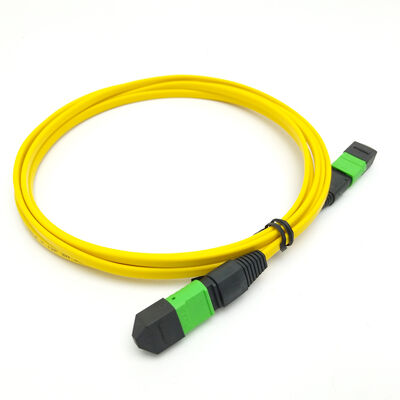

High-Performance MPO/MTP Patch Cord – 8/12/24 Fibers, Low Loss, IEC & TIA Compliant
The MPO/MTP multi-fiber connector series delivers high-density optical interconnection for today's bandwidth-hungry networks. Designed with a precision-molded MT ferrule and high-accuracy guide pins, it ensures exact fiber alignment for up to 24 fibers in a single interface. Whether you are building a data center backbone, upgrading a telecom central office, or deploying industrial networks, this connector family offers reliable, field-proven performance.
Two performance grades are available to match your link budget requirements:
- Standard version - typical insertion loss ≤0.35dB, max ≤0.70dB
- Low-loss version - typical insertion loss ≤0.20dB, max ≤0.35dB
Fully compliant with IEC 61754-7 and EIA/TIA-604-5, the series supports both single-mode (G652, G655, G657) and multi-mode (OM1-OM5) fibers, with PC or APC end faces.
Key Features
- Precision molded MT ferrule - Consistent core geometry for low loss and high repeatability
- High-precision guide pins - Exact alignment, even after repeated mating
- Compact design - Supports 4, 8, 12, or 24 fibers in a single connector body
- Two loss grades - Standard and low-loss versions to fit diverse link power budgets
- Wide compatibility - Works with SM (G652, G655, G657) and MM (OM1-OM5) fibers
- Multiple cable types - Mini round cable (≤4.5mm) or ribbon cable (≤3.0×5.0mm)
- Sheath options - PVC or LSZH, low smoke halogen-free for indoor safety
- Industry compliant - IEC 61754-7 and EIA/TIA-604-5
Applications
| Market Segment | Typical Use Cases |
|---|---|
| Data Centers | High-density patching between top-of-rack switches and aggregation layers |
| Telecommunications | Central office backbone, FTTx distribution frames |
| Enterprise Networks | Gigabit Ethernet, ATM backbone, premise cabling |
| CATV & Multimedia | Video signal distribution, headend interconnections |
| Industrial | Ruggedized optical links, switch inter-frame connections |
| Active Device Interfacing | O/E modules, transceivers, parallel optical interconnects between PC cards |
Technical Specifications
| Parameter | LC, SC, ST, FC (Single-Fiber) | MPO/MTP (Multi-Fiber) |
|---|---|---|
| End face type | UPC / APC | PC / APC |
| Fiber type | SM (G652, G655, G657); MM (OM1-OM5) | Same |
| Core count | 8, 12, 24 | Same |
| Cable diameter | 0.9 / 2.0 / 3.0 mm | Mini round: ≤4.5 mm Ribbon: ≤3.0×5.0 mm |
| Insertion loss | ≤0.3 dB | Standard: Typ. ≤0.35 / Max ≤0.70 dB Low loss: Typ. ≤0.20 / Max ≤0.35 dB |
| Return loss (min.) | UPC SM: 40dB APC SM: 60dB UPC MM: 25dB |
SM APC: 60dB MM PC: 20dB |
| Test wavelength | SM: 1310/1550 nm MM: 850/1300 nm |
Same |
| Repeatability | ≤0.1 dB | Same |
| Durability | ≤0.2 dB | Same |
| Interchangeability | ≤0.2 dB | Same |
| Operating temperature | -20℃ to +70℃ | Same |
| Storage temperature | -40℃ to +80℃ | Same |
| Outer sheath material | PVC / LSZH | Same |
| Bending radius (static/dynamic) | 10D / 20D | Same |
| Length | Customized | Same |
Note: All values are factory-tested. The MPO/MTP column shares identical optical performance specifications with the single-fiber column where marked "Same".
Performance Grades Explained
| Grade | Typical IL | Maximum IL | Best For |
|---|---|---|---|
| Standard | ≤0.35 dB | ≤0.70 dB | General-purpose patching, short-reach links, cost-sensitive deployments |
| Low-loss | ≤0.20 dB | ≤0.35 dB | High-power budget links, long-distance transmission, 40G/100G/400G applications |
Cable & Jacket Options
| Cable Type | Dimension | Sheath Material | Typical Use |
|---|---|---|---|
| Mini round cable | ≤4.5 mm OD | PVC or LSZH | Indoor ducts, data center overhead trays |
| Ribbon cable | ≤3.0×5.0 mm | PVC or LSZH | High-density breakout, mass fusion splicing |
Customization & Quality Assurance
- Custom lengths - Any length from 1m to 100m+ available.

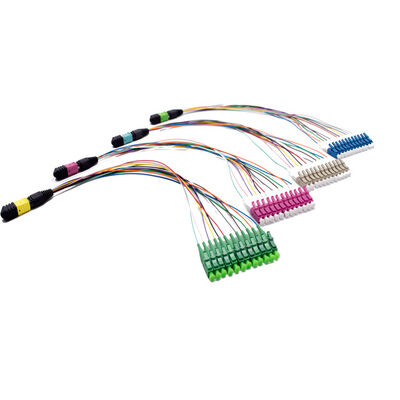

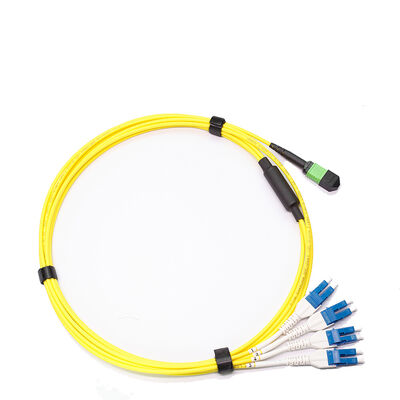

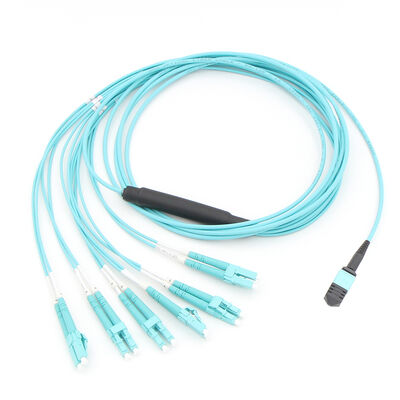

- Connector options - MPO/MTP can be terminated with LC, SC, ST, FC breakouts (fanout cables) as needed.
- 100% tested - Every assembly is tested for insertion loss, return loss, and end-face geometry (interferometer & microscope).
- ROHS compliant - All materials meet environmental standards.
- Labeling - Sequential port numbering, custom barcodes, or color-coded boots upon request.
Ordering Example
| Fiber Count | Grade | Cable Type | Sheath | Length | End Face |
|---|---|---|---|---|---|
| 12 | Low-loss | Mini round | LSZH | 5m | APC |
Order code:
(Contact us for a full ordering code table.)
MPO-12-LL-MINI-LSZH-5M-APC(Contact us for a full ordering code table.)
Why Choose Takfly's MPO/MTP Series?
- Proven reliability - Precision MT ferrule and guide pins ensure consistent alignment.
- Future-ready - Supports up to 24 fibers, compatible with 40G/100G/400G optics.
- Field-friendly - Easy to clean, robust push-pull latch mechanism.
- Global compliance - IEC, TIA, RoHS, REACH.
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are a manufacturer, FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive. More quantity, the price will be more competitive.
Q: Can you quote FOB price?
A: Yes. We can delivery by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver it by sea. We can quote price with freight and lead time for you, after you let us know detailed requirements with quantity. We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified. All the products are 100% test before delivery.
Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2-3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
Q: What's your warranty?
A: Depends on different product, we have 1 years warranty for patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.
Q: What's your packing?
A: International export standard package. If you need to print your logo on the packing, please let us know before we quote.
Q: Can you offer OEM/ODM?
A: Yes, we can. All products accept OEM/ODM. We can sign the Confidentiality Agreement.
Q: Can I have a sample?
A: It depends on which products, Free sample provide under 10 USD. Freight will be paid by buyer before delivery.
Q: How can I order?
A:
- Send mail or inquiries with product name, specification, and quantity to us. Provide your receive address if you need FOB, CIF, CFR price.
- We will offer our quotation with lead time.
- After the quotation confirmed, we will send a PI with our bank account.
- Production will be arranged after the payment received.
- Confirm the consignee with you before we deliver it.
- The tracking number will be provided after the delivery.
Q: What is your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
