1×8 MPO/MTP to SC/APC PLC Splitter – Single-mode, Low Insertion Loss, High-Density Optical Distribution for Data Centers

1×8 MPO/MTP to SC/APC PLC Splitter – Single-mode, Low Insertion Loss, High-Density Optical Distribution for Data Centers

Dettagli:

Luogo di origine: ShenZhen e ZhongShan Cina
Marca: DF/OEM/Nuetral
Certificazione: CE/ROHS/CPR EN50575/ISO9001 /ISO14001
Numero di modello: PLC 1×8 MPO/MTP-SC/APC+MPO/MTP

Termini di pagamento e spedizione:

Quantità di ordine minimo: 1
Prezzo: Can be negotiation
Imballaggi particolari: Cartone
Tempi di consegna: 5-9 I lavori dipendono dalla QUANTITÀ
Termini di pagamento: T/T,Paypal
Capacità di alimentazione: 2500 pezzi/settimana
Miglior prezzo Contatto

Informazioni dettagliate
Evidenziare:

1×8 MPO to SC/APC PLC splitter

,

single-mode MPO splitter low insertion loss

,

high-density MTP splitter for data centers

Descrizione di prodotto

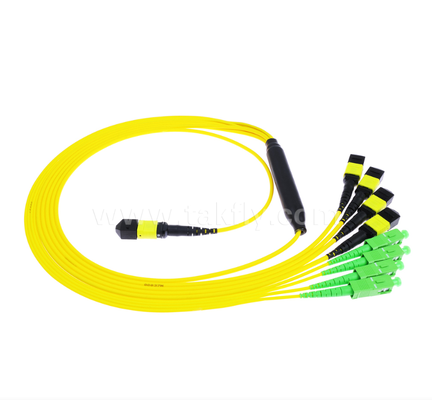

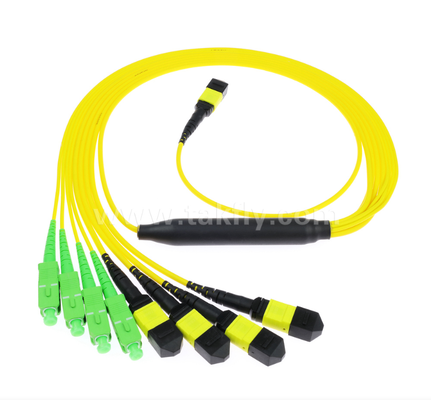

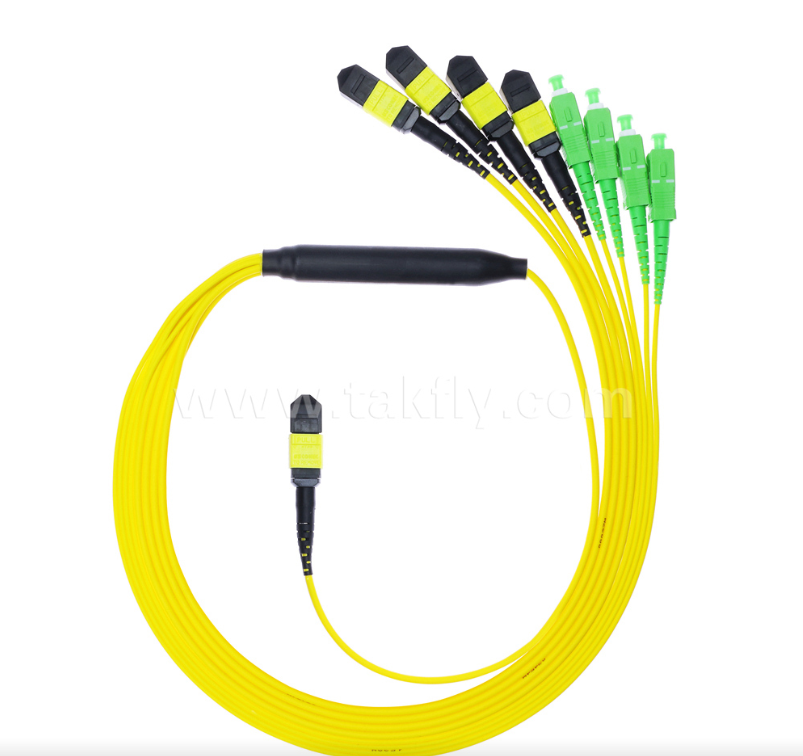

1×8 MPO/MTP to SC/APC PLC Splitter
Single-mode, Low Insertion Loss, High-Density Optical Distribution for Data Centers
Product Overview
The 1×8 PLC splitter is a high-performance hybrid optical distribution device that integrates PLC splitting technology with MPO/MTP high-density connectivity. Featuring an MPO/MTP adapter input and 8 individual SC/APC output connectors, this splitter enables seamless conversion from high-density trunk cabling to standard SC/APC equipment interfaces.
Manufactured using advanced Planar Lightwave Circuit (PLC) technology, the splitter utilizes a high-precision silica-based optical waveguide chip to distribute input optical power evenly across 8 output channels, providing excellent splitting uniformity, ultra-low polarization-dependent loss (PDL), and outstanding thermal stability.
1x8 MPO/MTP to SC/APC PLC Splitter diagram PLC splitter close-up view

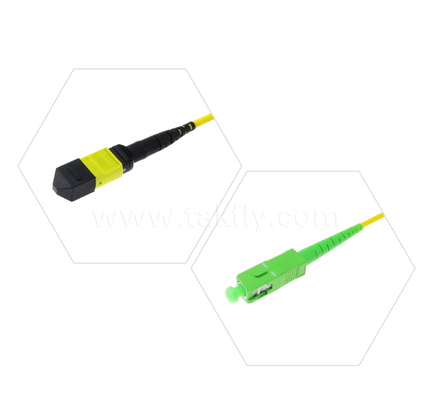

Selected High Quality Ferrule
Available with high quality ferrule, professional polishing technology, and precise matching for optical endface to achieve stable transmission and efficient connection.
High quality ferrule close-up
High Quality, 100% Testing
TAKFLY MPO/MTP-PLC Splitter are fully 100% tested, compliant with product standards, and designed to meet user demands.
Quality testing process
Key Features
  • 1×8 symmetrical split - excellent channel uniformity (≤0.8dB)
  • MPO/MTP adapter input - high-density plug-and-play connectivity
  • 8×SC/APC outputs - 8° APC polish, return loss ≥60dB
  • Telcordia GR-1209/1221 compliant
  • -40°C to +85°C operating temperature range
  • 100% tested with individual test reports included
  • Customizable: package type, output connector, cable length
Applications
  • Hyperscale data centers (40G/100G/400G architectures)
  • FTTH/FTTx & PON/GPON/XGS-PON networks
  • 5G front-haul / C-RAN architecture
  • High-density patching areas
  • Metro & access networks
  • CATV & video distribution
  • Test & measurement equipment
TAKFLY manufacturing capabilities
Why Choose TAKFLY?
26 Years of Manufacturing Experience in Fiber Optic Products
Company Capabilities
  • Experienced Assembly Team: More than 80 assembly workers with 6+ years of experience
  • Strong R&D Capability: More than 10 R&D engineers
  • Advanced Production Equipment: 16 sets of German imported injection machines and 16 production lines
  • Comprehensive Testing Facilities: More than 30 sets of testing instruments including OTDR, ILD, VFL, RL, IL, tension strength testers, crush resistance testers, power meter testers, and light checkers
  • OEM Branding Accepted: Custom logo/branding available
Quality Control Process
  • Incoming inspection: Spot check of raw materials before production
  • In-process inspection: Full inspection at every individual process completion
  • Pre-packaging inspection: Full inspection of finished products before packing
  • Pre-shipping inspection: Spot check before shipping
Industry Participation
Source Electronics Exhibition, OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, China.
Delivery Information
Service Type Timeline
Samples 1-3 working days
Mass production orders 3-7 working days
Packaging Plastic bag, carton, and pallet options available according to your requirements
