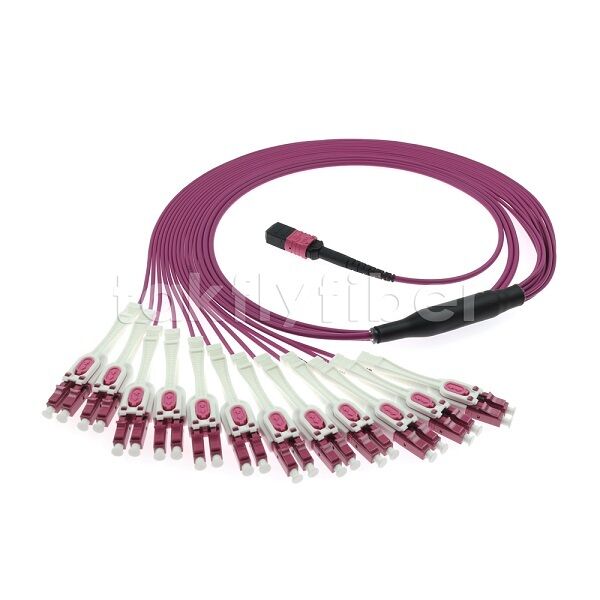

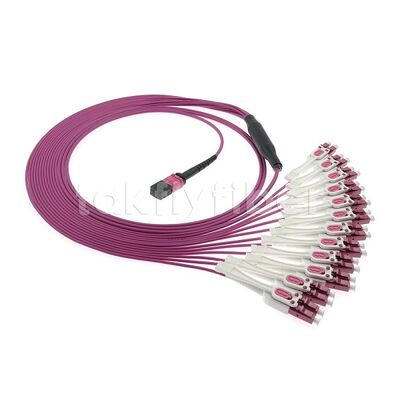

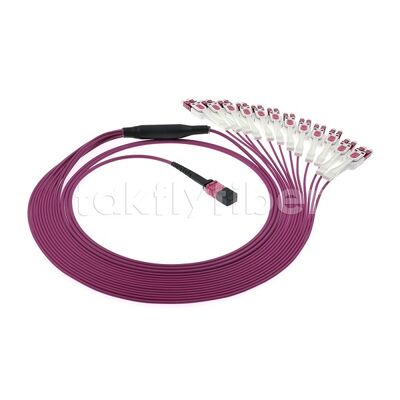

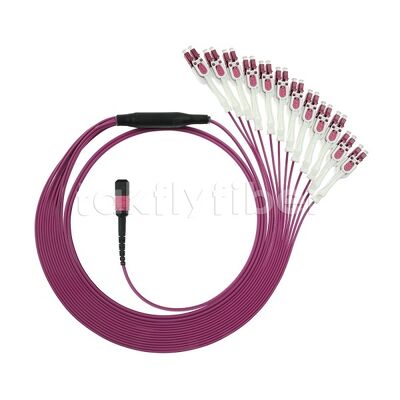

MPO/MTP Patchcord Fanout Uniboot LC Multimode OM4 Breakout Fiber Optic Cable for Data Center Cabling AI Telecom
Dettagli:
| Luogo di origine: | Cina |
| Marca: | OEM |
| Certificazione: | ISO, CE RoHS |
| Numero di modello: | MPO/MTP-MM-OM4-UniLC |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 |
|---|---|
| Prezzo: | USD12-40/pc |
| Imballaggi particolari: | Busta autosigillante in PE + cartone |
| Tempi di consegna: | 5-8 giorni lavorativi |
| Termini di pagamento: | T/T, Western Union |
| Capacità di alimentazione: | 50000 pezzi al mese |
|
Informazioni dettagliate |
|||
| Materiale: | LSZH, OFNP | Tipo di fibra: | mm |
|---|---|---|---|
| Colore: | Rosa rossa | Personalizzabile: | SÌ |
| Evidenziare: | MPO MTP patchcord uniboot LC,OM4 breakout fiber optic cable,data center cabling fiber optic |
||
Descrizione di prodotto
MPO/MTP Patchcord Fanout Uniboot LC Multimode OM4 Breakout Fiber Optic Cable
MPO/MTP breakout patch cords are engineered for data center cabling and AI telecom applications, delivering efficient optical connectivity in high-density environments.
Product Overview
MPO/MTP breakout patch cords consist of four main components: main cable, breakout cable, branching device, and connector. The multi-core main cable simplifies cabling management and prevents tangling, making it ideal for high-density optical cabling environments.
Key Features
- Changeable polarity with simple operation
- LC uniboot connector design saves 50% cabling space
- Compact and space-saving for high-density environments
- Tool-free outer housing opening
- High-quality ferrule with professional polishing technology
- Precise optical endface matching for stable transmission
- 100% tested for quality assurance
- Multiple types available with customization options
Applications
TAKFLY MPO/MTP breakout patch cords feature stable transmission and high reliability, making them ideal for optical network scenarios including data centers and various optical cabling applications.
Available Types
TAKFLY provides a full range of MPO/MTP-LC breakout patch cords with customizable transmission mode, cable type, and connector type options.
Technical Specifications
| Performance | Type | Multimode | Singlemode |
|---|---|---|---|
| Insertion Loss (IL) | MPO | Single Max: 0.35dB (L) Single Max: 0.60dB (G) |
Single Max: 0.35dB (L) Single Max: 0.75dB (G) |
| LC | Max: 0.10dB (L) Max: 0.15dB (G) |
Max: 0.30dB | |
| Return Loss (RL) | MPO | >20dB | >60dB (8 degree Angle Polish) |
| LC | >30dB | >50dB(UPC), >60dB(APC) | |
| Mechanical | MPO | <0.2dB, 200 times insertion | |
| LC | <0.2dB, 500 times insertion | ||
| Environmental | Working Temp | -20°C to +60°C | |
