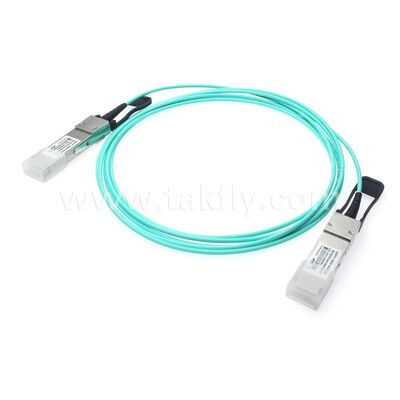

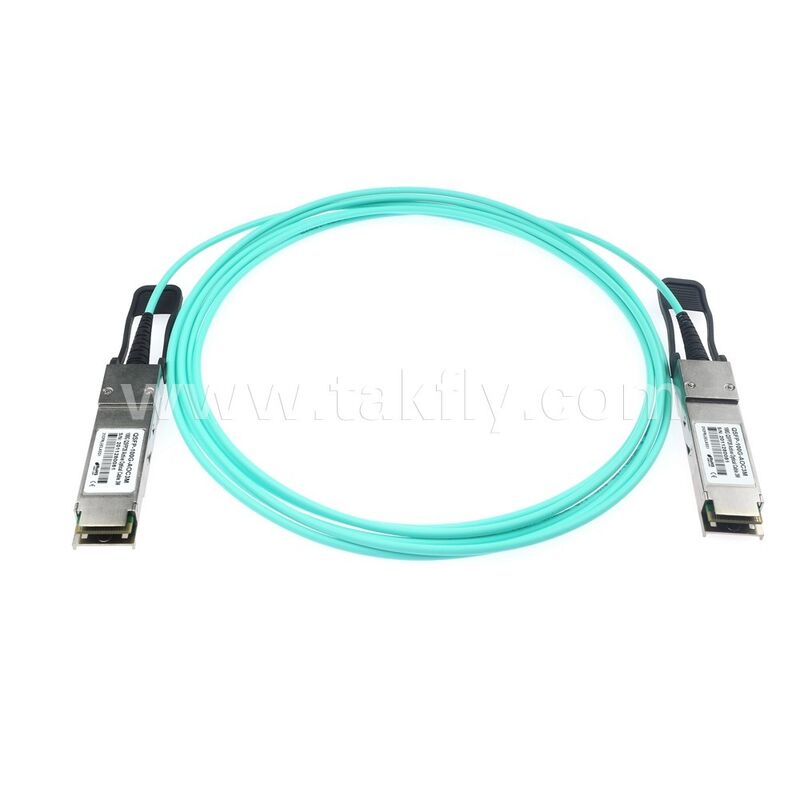

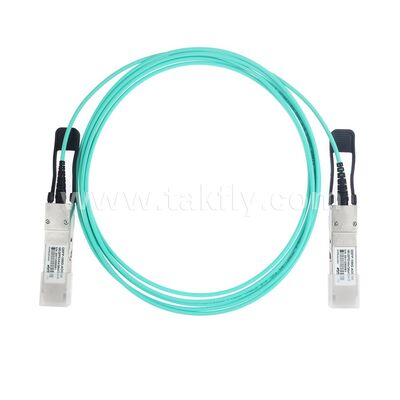

Active Optical Cables Fiber AOC 100Gbps QSFP28 to QSFP28 for Data Center FTTH FTTX

The TAKFLY QSFP28 active optic cables are a high-performance, low-power consumption, long-reach interconnect solution supporting 100G Ethernet, InfiniBand QDR/DDR/SDR, 12.5G/10G/8G/4G/2G fiber channel, PCIe and SAS. Compliant with QSFP MSA and IEEE P802.3ba standards.

QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 25.78125Gb/s, providing an aggregated rate of 104Gb/s. TAKFLY QSFP28 AOC is a parallel transceiver that provides increased port density and total system cost savings.

• Four-channel full-duplex active optical cable
• Transmission data rate up to 26Gbit/s per channel
• Reliable VCSEL array technology using multimode fiber
• Available in standard lengths of 3, 5, 10, 15, 20, 30, 50, 70m
• Low power consumption <3.5W
• Operating case temperature 0°C to +70°C
• 3V power supply voltage
• RoHS 6 compliant
• Hot Pluggable QSFP form factor

• 100G Ethernet
• Data center
• Infiniband QDR/DDR/SDR
• 4G/8G/10G Fibre Channel
