GYTA53 Outdoor Fiber Optic Cable with Water Blocking System LSZH Jacket for Direct Burial
Dettagli:
| Luogo di origine: | Guangdong, Shenzhen |
| Marca: | TAKFLY |
| Certificazione: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Numero di modello: | GYTA53-T |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 Pic |
|---|---|
| Prezzo: | US$0.01 ~ US$1200/PC |
| Imballaggi particolari: | spone + scatola + cartone |
| Tempi di consegna: | 3-7 giorni lavorativi |
| Termini di pagamento: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
|
Informazioni dettagliate |
|||
| Nastro annerente all'acqua: | SÌ | Sistema di blocco dell'acqua: | Composto riempitivo/resistente all'acqua a secco |
|---|---|---|---|
| Perdita di ritorno: | ≥55dB | Nucleo: | Multicore |
| Tipo di fibra: | G.652D | Standard: | IEC 60794-2-10/11, TIA/EIA 568-C.3 |
| campione: | Disponibile | Materiale della giacca: | LSZH |
| Parole chiave: | Cavo flessibile in fibra ADSS Cable | Giacca esterna: | HDPE o LSZH |
| Modello: | SC/UPC~SC/APC | Intervallo di temperatura: | -40~+70 |
| Tipo Iber: | modalità singola o modalità multipla | Imballaggio: | tamburo di legno |
| Utilizzo del cavo: | Cavo di distribuzione per interni | ||
Descrizione di prodotto
GYTA53 Fiber Optic Cable
Product Description

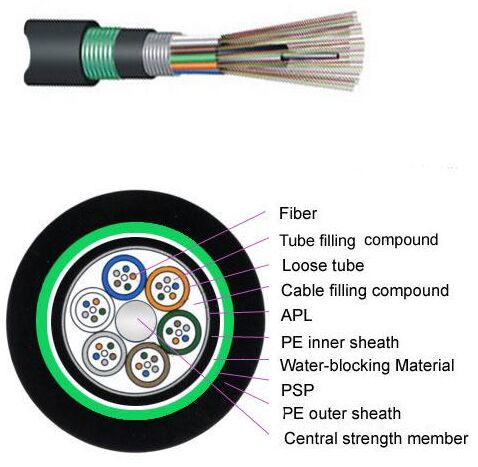

The fibers, 250μm, are positioned in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cables with high fiber count, locates in the center of the core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with filling compound to protect it from water ingress. The cable core is then covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
Key Characteristics
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensures critical protection of fiber
- Crush resistance and flexibility
- Comprehensive watertight protection measures:
- Steel wire used as central strength member
- Loose tube filling compound
- 100% cable core filling
- APL moisture barrier
- PSP enhancing moisture-proof
- Water-blocking material
Applications
- Outdoor distribution
- Suitable for aerial, duct and direct buried installation
- Long distance and local area network communication
Optical Fiber Characteristics
| Parameter | G.652.D | G.655 | 50/125μm | 62.5/125μm |
|---|---|---|---|---|
| Attenuation @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| Attenuation @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| Attenuation @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | ||
| Attenuation @1550nm | ≤0.22 dB/km | ≤0.23 dB/km | ||
| Bandwidth @850nm | ≥500 MHz*km | ≥200 MHz*km | ||
| Bandwidth @1300nm | ≥1000 MHz*km | ≥600 MHz*km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm |
Technical Data
| Item | Contents | Value |
|---|---|---|
| Loose tube | Material | PBT/PP |
| Diameter | Ф2.2mm | |
| Central strength member | Material | Steel wire/Steel wire with PE cover |
| Diameter | Ф2.0mm | |
| Inner sheath | Material | MDPE/HDPE |
| Thickness | 1.0mm | |
| Outer sheath | Material | MDPE/HDPE |
| Thickness | 1.7mm |
Cable Mechanical Characteristics
| Cable Type | Diameter (mm) | Weight (Kg/km) | Max. Tension (N) | Crush Resistance (N/100mm) | Min. Bending Radius (mm) | Storage Temperature (℃) |
|---|---|---|---|---|---|---|
| GYTA53-2~60 | 12.5 | 160 | 1000/3000 | 1000/3000 | 20D/10D | -20~+70 |
| GYTA53-62~72 | 14.5 | 210 | 1000/3000 | 1000/3000 | 20D/10D | -20~+70 |
| GYTA53-74~96 | 15.7 | 245 | 1000/3000 | 1000/3000 | 20D/10D | -20~+70 |
| GYTA53-122~144 | 18.5 | 320 | 1000/3000 | 1000/3000 | 20D/10D | -20~+70 |
