SC/APC Duplex 9/125um Singlemode Fiber Optic Cable 3.0mm PVC
Dettagli:
| Certificazione: | RoHS, CE, ISO9001, VDE, CCC |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 |
|---|---|
| Prezzo: | 1.56 |
|
Informazioni dettagliate |
|||
| Struttura di connessione: | SC-SC | Forma materiale: | Filo rotondo |
|---|---|---|---|
| Consentito la pressione laterale: | 100 (N/100mm) <1000 (N/100mm) | Consentito resistenza alla trazione: | 100n <1000N |
| nucleo: | Singolo core | Materiale di guaina: | PVC o LSZH |
| Tipo di connettore: | SC, FC, ST, LC, MTRJ, MPO, MTP, MU, SMA, ECT | Diametro esterno del cavo: | 0,9 mm, 1,6 mm, 1,8 mm, 2,0 mm, 2,4 mm, 2,8 mm, 3,0 mm |
| Lucidatura MTP MPO: | PC, UPC, APC | Tipo di fibra: | OS1, OS2, OM1, OM2, OM3, OM4 |
| Materiale della giacca via cavo: | PVC, LSZH, OFNP, PE | Nuclei in fibra: | SX, DX, 4 ~ 144 core multi-fibre |
| Perdita di ritorno: | PC> 30DB; APC> 50dB | Perdita di inserzione: | <0,3 dB |
| Lunghezza d'onda dell'operazione: | 850nm, 1310nm, 1550nm | ||
| Evidenziare: | SC/APC duplex singlemode fiber cable,9/125um fiber optic cable with PVC,3.0mm singlemode fiber optic cable |
||
Descrizione di prodotto

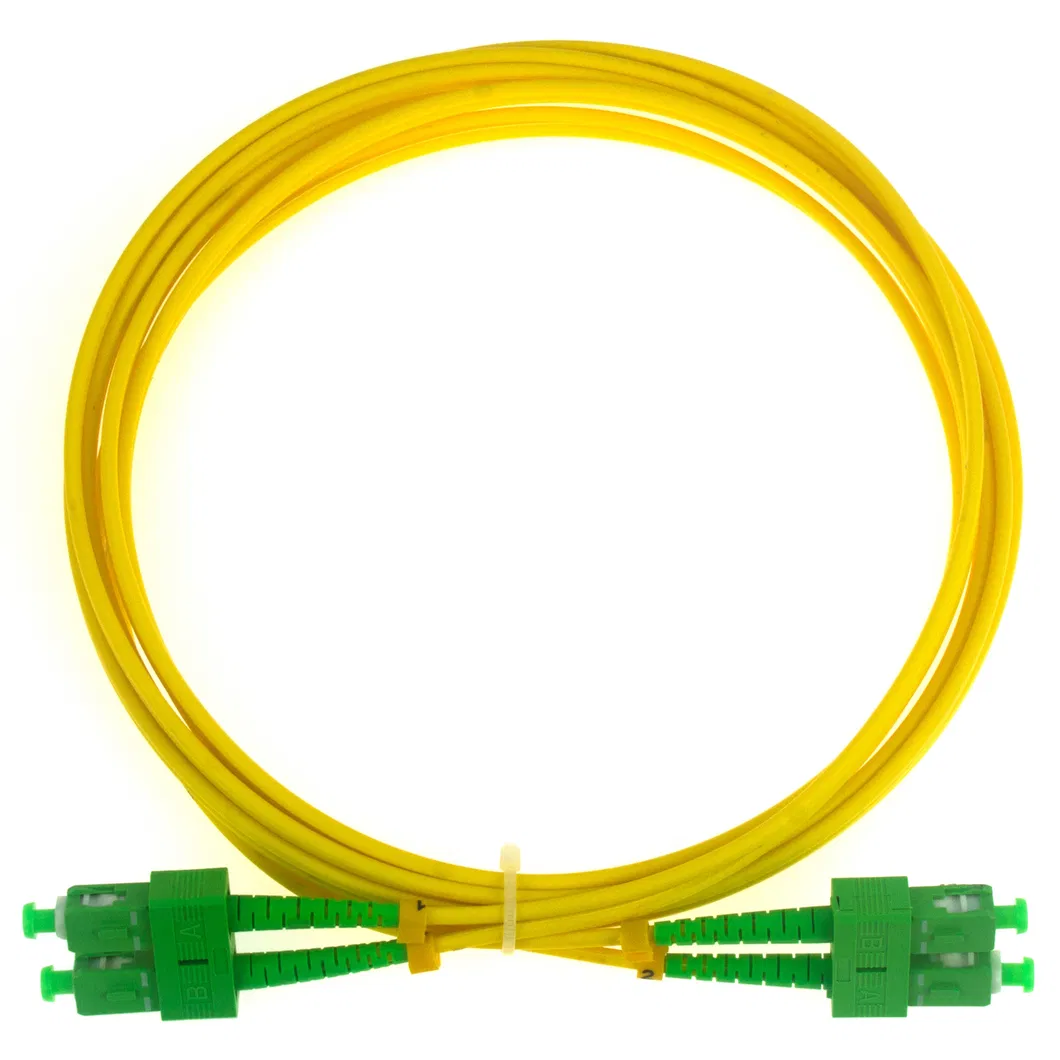

SC/APC Duplex 9/125μm Singlemode Communication Cable
Product Description
High-performance singlemode fiber optic cable with SC/APC connectors, designed for reliable communication networks with low insertion loss and high return loss.
Specifications
- Type: SC-SC
- Polishing: PC (APC/UPC)
- Insertion Loss: ≤0.2 dB
- Return Loss: ≥50dB
- Exchangeability: ≤0.2dB
- Repeatability: ≤0.2dB/1000times
- Operation Wavelength: 850nm, 1310nm, 1550nm
- Operating Temperature: -30°C to +75°C
- Storage Temperature: -40°C to +85°C
- Cable OD: 3.0mm/2.0mm/0.9mm
- Cable Material: OFNR, LDZH & Polarization maintaining
- Mode: 9/125μm
- Fiber Cable Type: PVC 3.0mm
- Available Cores: Single core, dual-core, 4 core, 6 cores, 12 core (customizable)
- Connector Options: FC, SC, ST, LC, MU, MTRJ, E-2000
- Custom Lengths Available
Key Features
- Low insertion loss
- High return loss (low reflection)
- Easy installation
- Cost-effective solution
- High reliability
- Low environmental sensitivity
- User-friendly design
Applications
- CATV systems
- Active device termination
- Telecommunication networks
- Metro networks
- Local Area Networks (LANs)
- Data processing networks
- Test equipment
- Premise installation
- Wide Area Networks (WANs)
Performance Specifications
| Singlemode (UPC) | Singlemode (APC) | Multimode | |
|---|---|---|---|
| Insertion loss | ≤ 0.2dB | ≤ 0.2dB | ≤ 0.25dB |
| Return loss | ≥55dB | ≥65dB | ≥30dB |
| Durability | ≤ 0.1dB typical change, 1000 times mating | ||
| Operating Temperature | -45°C to +85°C | ||
Ferrule Hole Sizes
| Singlemode (UPC) | Singlemode (APC) | Multimode |
|---|---|---|
| 125.0+1/-0μm, Concentricity: ≤1.0μm | 125.0+1/-0μm, Concentricity: ≤0.5μm | 125.0μm, Concentricity: ≤3.0μm |
| 125.3+1/-0μm, Concentricity: ≤1.0μm | 125.3+1/-0μm, Concentricity: ≤0.5μm | 127.0μm, Concentricity: ≤3.0μm |
| 125.5+1/-0μm, Concentricity: ≤1.0μm | 125.5+1/-0μm, Concentricity: ≤0.5μm | 128.0μm, Concentricity: ≤3.0μm |
| 126.0+1/-0μm, Concentricity: ≤1.0μm | 126.0+1/-0μm, Concentricity: ≤0.5μm |
Connector Options
| Singlemode 9/125 | Multimode (50/125 or 62.5/125) |
|---|---|
| ST | ST |
| SC | SC |
| FC | FC |
| LC | LC |
| MU | MU |
| MTRJ(female) | MTRJ(female) |
| MTRJ(male) | MTRJ(male) |
| DIN | E2000 |
| E2000 |
