Duplex Armored Optical Cable 2000M LSZH/PVC/PU
Dettagli:
| Luogo di origine: | Cina, Shenzhen |
| Marca: | DF/OEM/Nuetral |
| Certificazione: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Numero di modello: | TK-PC-48F-SC-OS2-50M |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | Negoziabile |
|---|---|
| Prezzo: | negotiable denpend on QTY |
| Imballaggi particolari: | Blister + cartone |
| Tempi di consegna: | 5-9 giorni lavorativi a seconda del QTY |
| Termini di pagamento: | Western Union, T/T, MoneyGram/Paypal |
| Capacità di alimentazione: | 1000pcs/giorno |
|
Informazioni dettagliate |
|||
| Nome del prodotto: | Fascio di cavi ottici armati | Diametro esterno (millimetri): | 3,0 mm |
|---|---|---|---|
| Conta delle fibre: | 2 | rinforzo del nucleo: | Filato aramidico |
| Materiale: | Acciaio inossidabile | Diametro(±1μm): | 125 μm |
| Materiale della giacca: | LSZH/PVC | Colore: | Bianco e blu o personalizzato |
| Lunghezza d'onda: | 1310nm, 1550nm | Lunghezza: | 2000m o su misura |
| Temperatura operativa: | -20 ℃ ~ 70 ℃ | Diametro del rivestimento(±5μm): | 250 μm |
| Marchio in fibra: | Corning, YOFC, OFS, Draka | ||
| Evidenziare: | duplex armored fiber optic cable,2000m LSZH fiber optic cable,PVC PU armored optical cable |
||
Descrizione di prodotto
Duplex Armored Optical Cable 2000M LSZH/PVC/PU
Bundle Armored Optical Cable 2000M LSZH/PVC/PU
Duplex 8 glyph zipcord armored cable use Φ600µm or Φ900µm flame-retardant tight buffer fiber as optical communication medium. The tight buffer fiber wrapped with a layer of steel wire, and aramid yarn as strength member units, such unit is extruded with a layer of PVC or LSZH material as inner jacket. Then the cable is completed with a layer of PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket.
Duplex 8 glyph zipcord armored cable use Φ600µm or Φ900µm flame-retardant tight buffer fiber as optical communication medium. The tight buffer fiber wrapped with a layer of steel wire, and aramid yarn as strength member units, such unit is extruded with a layer of PVC or LSZH material as inner jacket. Then the cable is completed with a layer of PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket.
Fiber Optic Cable Applications
- Optical fiber active connection jumper or tail fiber
- Optical connections in optical communication equipment rooms and optical distribution frames
- Interconnection of instruments and communication equipment
Fiber Optic Cable Features
- Good mechanical and environmental characteristics
- Flame retardant characteristics meets the requirements of relevant standards
- The mechanical characteristics meet the requirements of relevant standards
- Soft, flexible, easy to splice, and with big capacity data transmission
- Anti rodent and UV stable
- Meet various requirements of market and clients
Fiber Optic Cable Parameter and Properties
Fiber Optic Cable Structure

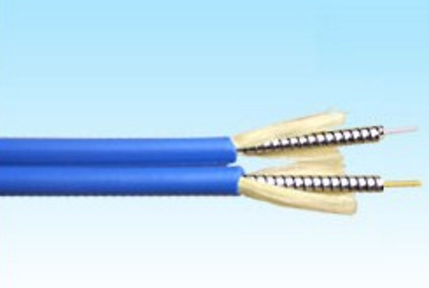

Product Picture
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery:
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
