Flat Duplex Armored Optical Cable 2000M LSZH/PVC/PU
Dettagli:
| Luogo di origine: | Cina, Shenzhen |
| Marca: | DF/OEM/Nuetral |
| Certificazione: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Numero di modello: | TK-PC-48F-SC-OS2-50M |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | Negoziabile |
|---|---|
| Prezzo: | negotiable denpend on QTY |
| Imballaggi particolari: | Blister + cartone |
| Tempi di consegna: | 5-9 giorni lavorativi a seconda del QTY |
| Termini di pagamento: | Western Union, T/T, MoneyGram/Paypal |
| Capacità di alimentazione: | 1000pcs/giorno |
|
Informazioni dettagliate |
|||
| Nome del prodotto: | Cavo ottico armato duplex piatto | Conta delle fibre: | 2 |
|---|---|---|---|
| rinforzo del nucleo: | Filato aramidico | Materiale: | Acciaio inossidabile |
| Materiale della giacca: | LSZH/PVC | Colore: | Blu per cavo monomodale, grigio per cavo multimodale; Oppure altri colori disponibili su richiesta |
| Materiale di guaina: | PVC/LSZH/PU | Diametro esterno (millimetri): | 3,0*5,0; 4.0*7.0 |
| Diametro(±1μm): | 125 μm | Diametro del rivestimento(±5μm): | 250 μm |
| Temperatura operativa: | -20 ℃ ~ 70 ℃ | Lunghezza: | 2000m o su misura |
| Marchio in fibra: | Corning, YOFC, OFS, Draka | Peso del cavo (kg/km): | 15-19 |
| Evidenziare: | Flat Duplex Armored Optical Cable,LSZH PVC PU Fiber Optic Cable,2000M Armored Fiber Optic Cable |
||
Descrizione di prodotto

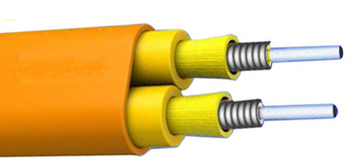

Flat Duplex Armored Optical Cable 2000M LSZH/PVC/PU
Flat Twin Duplex Indoor armored Cable use Φ600µm or Φ900µm flame-retardant tight buffer fiber as optical communication medium. The tight buffer fiber wrapped with a layer of steel wire, and aramid yarn as strength member units, such unit is extruded with a layer of PVC or LSZH material as inner jacket. Then the cable is completed with a layer of flat PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket as out sheath.
Product Applications
- Optical fiber active connection jumper or tail fiber
- Optical connections in optical communication equipment rooms and optical distribution frames
- Interconnection of instruments and communication equipment
Product Features
- Two single-fiber as basic unit. flat twin configuration
- Single-cable with Φ600µm or Φ900µm tight buffer. aramid yarn with steel armored
- Flexible or out sheath independent strength member
- Excellent mechanical and environmental performance
- Meet various requirements of market and clients
Optical Parameter and Properties
| Optical fiber type | Test wavelength | Decay | Full injection bandwidth (MHZ.km) | Effective modal bandwidth (MHZ.km) | Minimum bending radius(mm) |
|---|---|---|---|---|---|
| G652D | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 16 |
| G657A1 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 10 |
| G657A2 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 7.5 |
| 62.5/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥200/500 | 30 |
| 50/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥500/500 | 30 |
| OM3 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | 7.5 |
| OM4 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | 7.5 |
| OM5 | 850/953nm/1300nm | 3.0/.../1.0 | 3.5/.../1.5 | ≥3500/1850/500 | 7.5 |
Product Structure
Other Requirements
Length of production optical cable: 2000M
Optical cable outer sheath printing specifications, such as:
ARMORED OPTICAL FIBER CABLE 4.0X7.0 SM G652D-9/125um - LSZH - MM/YY 00000M
Optical cable outer sheath printing specifications, such as:
ARMORED OPTICAL FIBER CABLE 4.0X7.0 SM G652D-9/125um - LSZH - MM/YY 00000M
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery:
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
